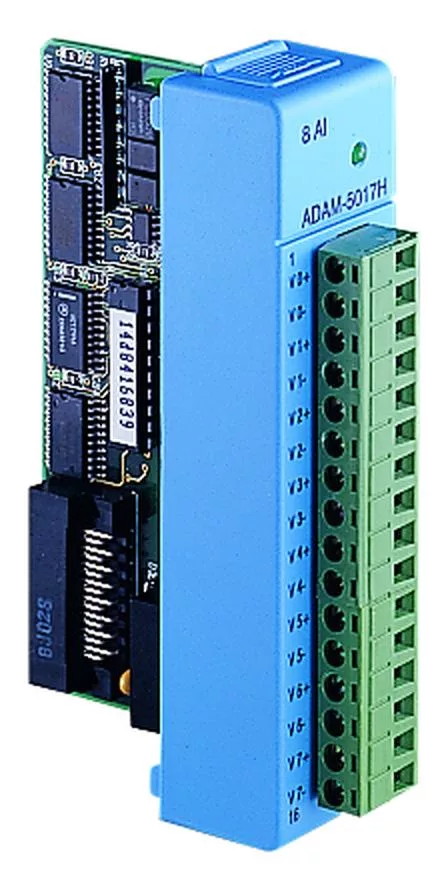

ADAM-5017H, 8-channel High-speed Analog Input Module
€316,00 Excl. VAT / €391,84 Incl. VAT
-Accuracy: ±0.1% or better.
-Effective resolution: 12-bit plus sign bit.
-1000 Hz bandwidth.
-High sampling rate:ADAM-5000/485&5000E: 100 samples/sec, ADAM-5510 & ADAM-5511: 8000 samples/sec max.
-3000VDC Isolation voltage protection.
-Distinct range settings allowed on each channel.
-Input type: mV, V, mA.
DatasheetAvailable on backorder
The ADAM-5017H is a 12-bit plus sign bit, 8-channel analog differential input module that provides programmable input ranges on each channel. It accepts millivolt inputs (? 500 mV, 0-500 mV), voltage
| Weight | 12 kg |
|---|---|
| Dimensions | 150 × 73 × 50 cm |
| Datasheet | https://advanbuy.com/Products/ADAM/ADAM-5000/ADAM-5013_5017_H.pdf |
