Specification

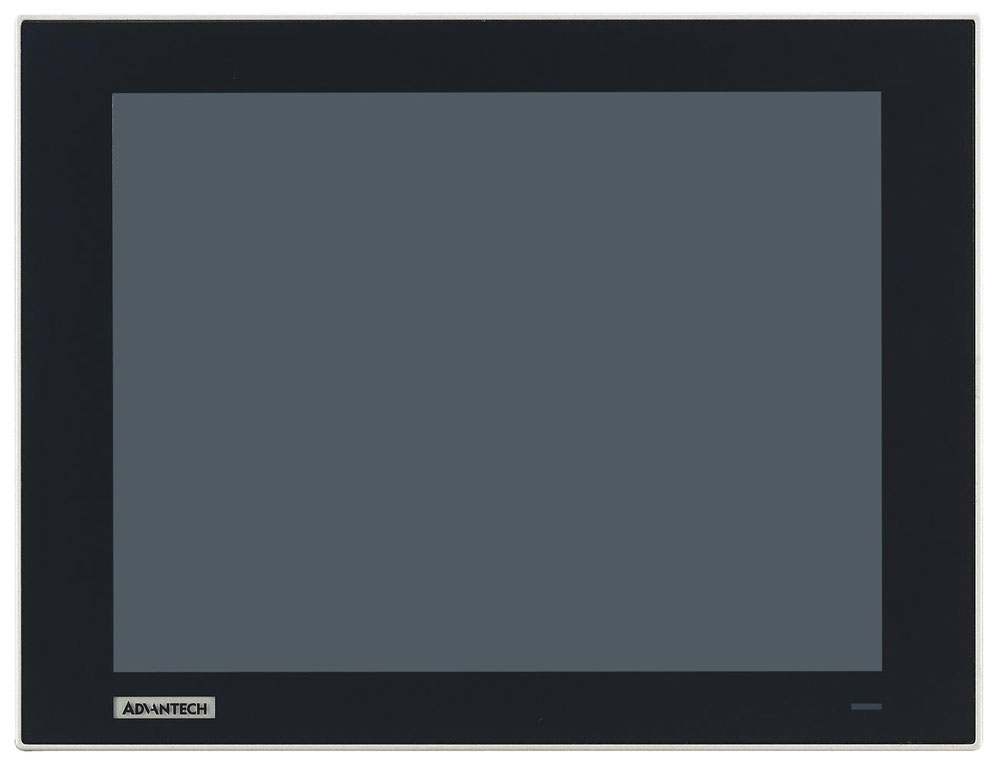

| Model No. | TPC-1251T-E3 | |
| CPU | Intel Atom™ E3845, 1.91 GHz, quad core ® | |
| Memory | 1x SODIMM with 4 GB DDR3L SDRAM (up to 8 GB) | |
| LAN | 2 x Intel® I210; 10/100/1000 BASE-T | |
| Expansion Slots | 1 x Full-size mini PCIe | |
| Storage | 1 x 2.5″ SATA SSD, 1 x mSATA | |
| I/O | 1 x RS-232 1 x RS-232/422/485 1 x USB 3.0 3 x USB 2.0 1 x iDoor slot |
|
| Lifespan | 36 million touches at a single point | |
| Light Transmission | Above 75% | |
| Resolution | Linearity | |
| Type | 5-wire analog resistive | |
| Humidity | 10 ~ 95% RH @ 40 °C, non-condensing | |
| Ingress Protection | IP66-rated front panel | |
| Operating Temperature | -20 ~ 60 °C (-4 ~ 140 °F) | |
| Storage Temperature | -30 ~ 70 °C (-22 ~ 158 °F) | |
| Vibration Protection | With SSD: 1 Grms (5 ~ 500 Hz) (operating, random vibration) |
|
| Weight | 2.50 kg |
|---|---|
| Dimensions | 395 × 155 × 385 cm |
