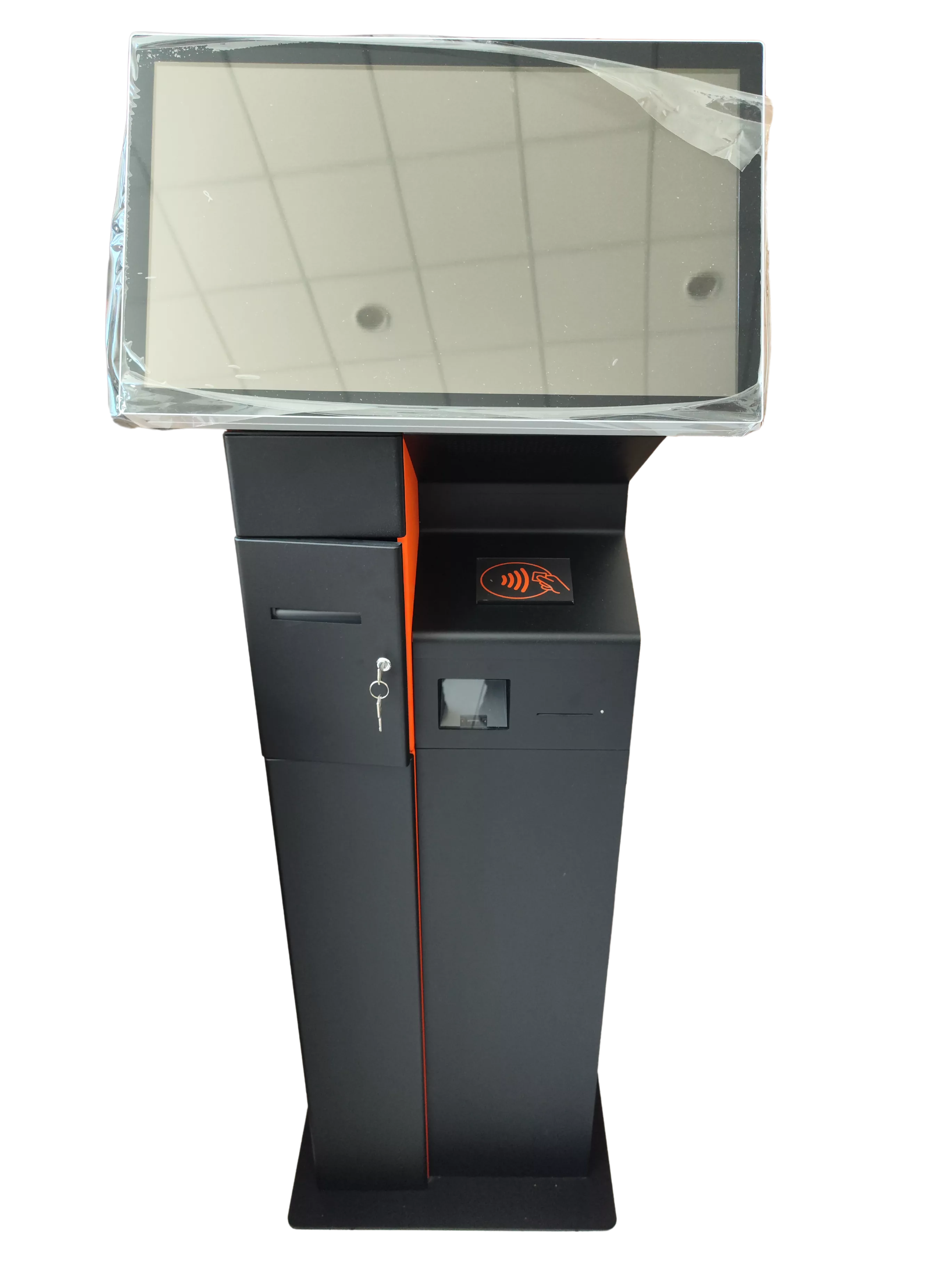

21.5″, P-CAP T/S, Core i5-6300U, 4GB RAM, Thermal Printer, 2D Barcode, NFC, Chip Card Reader, Double Floor Stand
2 x RS-232 COM (RS-422/485)*
2 x USB 2.0(1 x be occupied by 2D barcode)
2 x USB 3.0(All be occupied by thermal printer,
NFC and chip card reader)
2 x Gigabit Ethernet (RJ-45)
1 x VGA & HDMI
Audio Line-out x 1, Mic-in x 1
Support : ISO15693,ISO14443A/
B,Felica,Mifare,Tag-it, STLRI1K,STM24LRXX.
Size/Type 21.5″ TFT LCD with LED backlight (15.6″ Available)*
Max.Resolution 1920 x 1080
Max. Color 16.7M
Pixel Pitch (um) 248.25 x 248.25
Brightness (cd/m2) 250 (Optional 400)
View Angle 178°/178°
Environmental
Specifications
Operating Temperature 0 ~ 40° C (32 ~ 104° F)
Relative Humidity 10 ~ 95% @ 40° C non-condensing
Vibration 0.5G
Shock 5G peak acceleration (11 msec. duration)
EMC/ Safety CE, FCC
Front Panel Protection IP65/ NEMA4 Compliant
Power Supply
Input Rating 12 V/7 A (84 W ITE Adapter)
Power consumption Typical 45W
Max. 65W
Network (LAN) 2 x Gigabit Ethernet ports (Supports Wake on LAN)
Stereo Speaker 10W x 2
Bus expansion Full-size MiniPCIe/mSATA
Mounting VESA 100 x 100 mm
Dimensions (W x H x D) 517.64 x 313.51 x 43.50(mm)
Weight 8 kg
| Weight | 8 kg |
|---|---|
| Dimensions | 518 × 313 × 43 cm |
