APAX-5001-A1E, 1-slot Backplane Module

Name: APAX-5001-A1E, 1-slot Backplane Module
SKU: APAX-5001-A1E
Price: 47.00 EUR
Availability: InStock

€47,00 Excl. VAT / €58,28 Incl. VAT

One slot for one APAX-5000 modules

Combines with APAX-5002 backplane to satisfy installation requirements

Supports both DIN-rail and wall mounting

Hot swap mechanism for all APAX I/O modules

30G shock resistance and 2Grms vibration resistance

Datasheet

Available on backorder

Compare

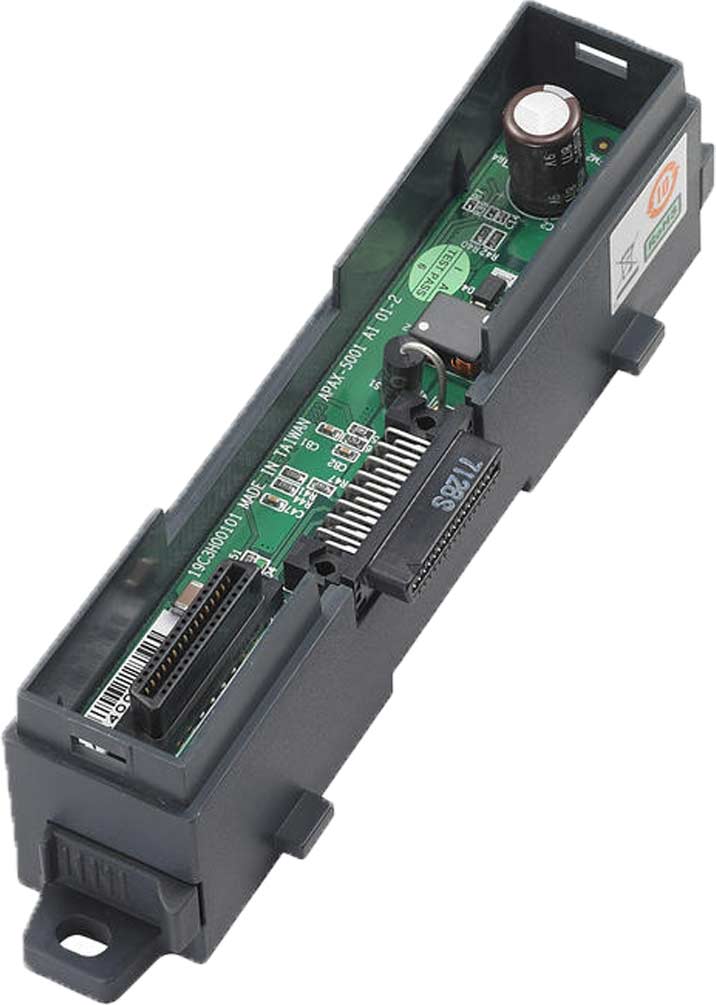

APAX-5001 modules are backplane modules, offering communication and power to APAX-5000 I/O modules inserted on it. APAX-5001 always serves as the last backplane when module number is odd.

Weight	0.07 kg
Dimensions	236 × 160 × 55 cm
Datasheet	https://advanbuy.com/Products/APAX/APAX-5001_DS20140102162228.pdf

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Datasheet APAX-5001

Download

SKU: APAX-5001-A1E Category: APAX - xxxx Tag: APAX-5001
